Installation Guide: F6 Multi Car Gauge
Thank you for purchasing the F6 Multi Car Gauge. This guide is designed to help you install your new speed gauge quickly, safely, and correctly. Please read through all instructions before beginning the installation to ensure optimal performance and safety.
How to Install
1.Noted: Before installation, drive your car to outdoor places, not in indoors(Not in Parking garages / underground garages / home / tunnels), and then open your car window;

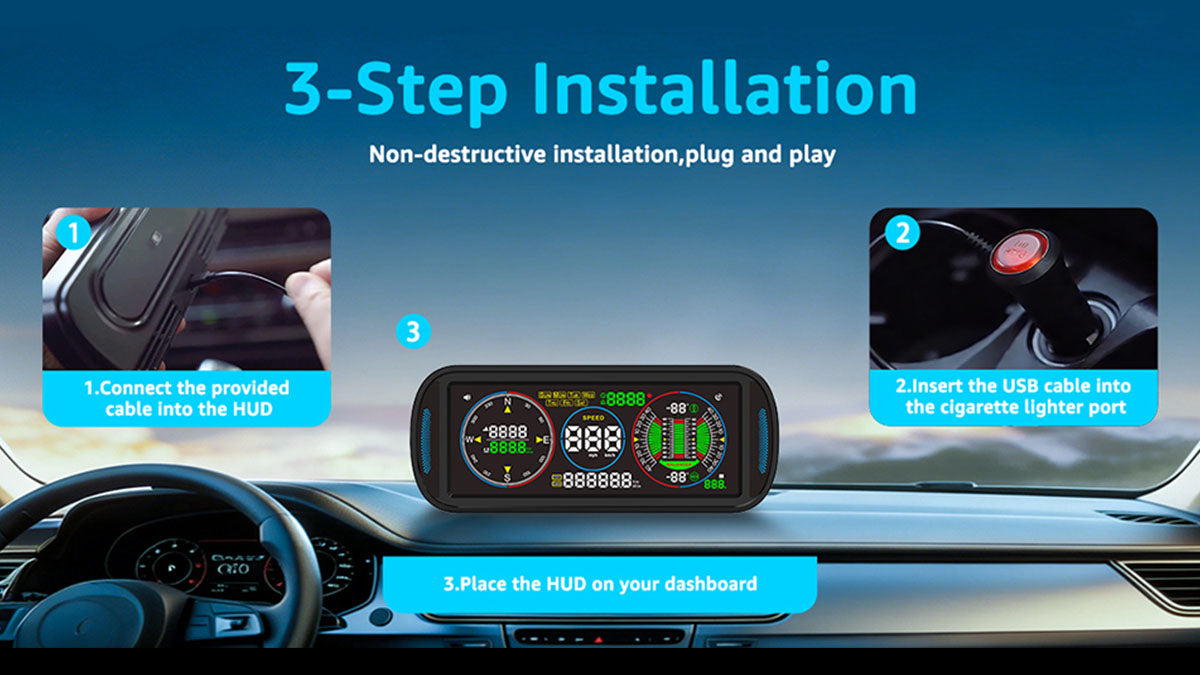

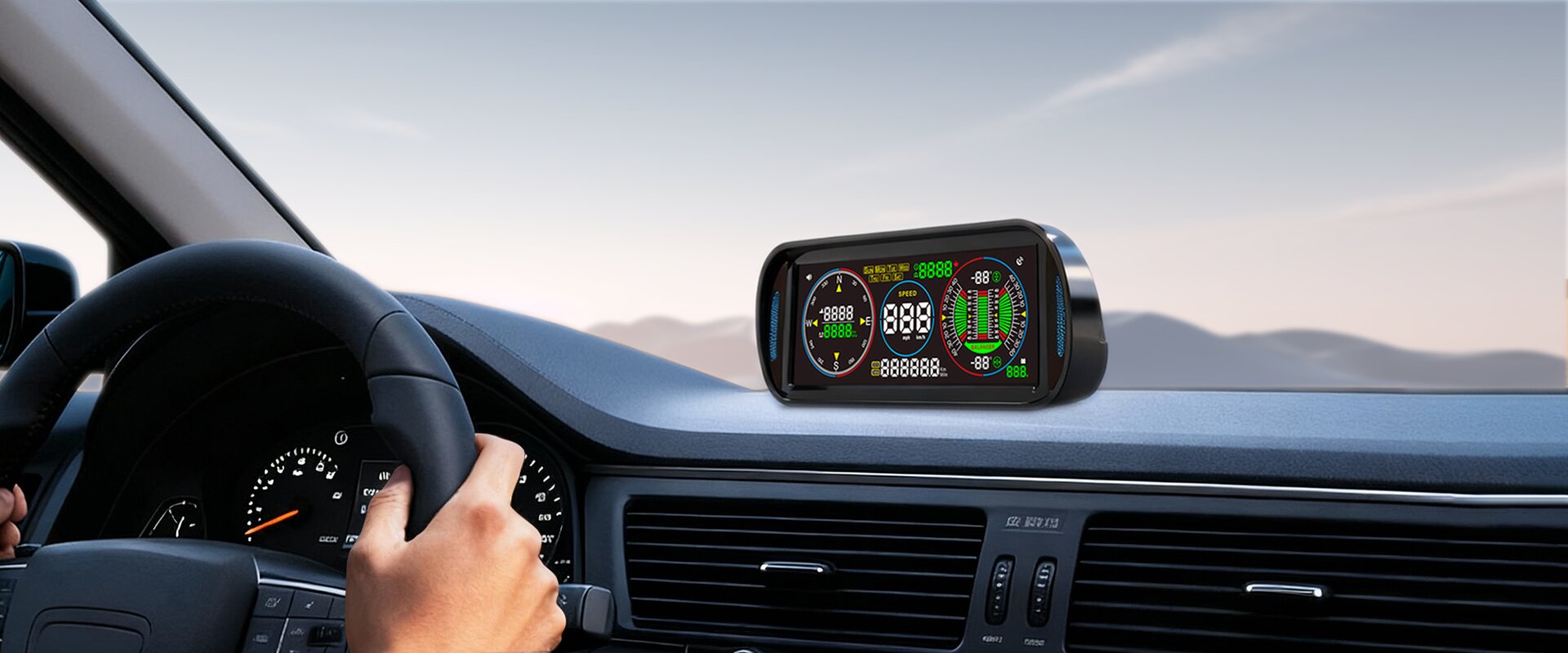

2.Connect type-c end of the cable to the device, plug the other end of the cable into your car cigarette lighter interface, stick the device on the dashboard;
3.Turn on your car, switch on the device and the car cigarette lighter, please wait 1-3 minutes to search for the satellite signals(Tips: there is no signal in underground garages and tunnels);
4. After successful positioning, make sure the car is on a flat surface and short press the button(making a "beep" sound) to calibrate the slope meter. At this time, the pitch angle and roll angle values will be reset to "00".
System Settings
- Long-press the button to enter into the settings interface;
- Scroll Up/Down the button to select your desired function setting, there are 10 function settings for you to choose;
- Short-press the button to confirm.
- Scroll Up/ Down the button to adjust the value;
- Short-press the button to save it; Release your hand, it will automatically back to the main interface.
-
-1. Alarm ON/OFF
0: OFF (Default)
1: ON
-
-2. Time Format
0: 24H (Default)
1: 12H
-
-3. Speed Unit
0: KM/H
1: MPH
-
-4. Timezone
- According to your local timezone,
- if your timezone is UTC+8, set it to 08,
- if your timezone is UTC-8, set it to -08.
-
-5. Brightness
0: Auto Brightness (Default)
1: Dark
2: Middle
3: Bright
-
-6. Speed Alarm Limit
Default: 120 KM/H / MPH
-
-7. Speed Coefficient Correction
- Default: 100
- If car speed is 100, the HUD shows 103, set it to 97;
- If car speed is 100, the HUD shows 97, set it to 103;
-
-8. Fatigue Driving Reminder
Default: 4 Hours, there are 0-9 hours for your choice.
-
-9. Atmosphere Light Color
Default: 4 (Blue), there are 8 colors for your choice.
-
-10. Odometer Setting
Set the value from left to right, when the number flashed, scroll up/down the button to adjust the value, short press the button to save. (Max.Value: 999999 miles/kilometers)
Restore Factory Settings
- Switch ON the device, at the same time Long press the setting button;
- After the machine is fully displayed, release your hand, then the factory setting is completed.
FAQ
Can I switch between MPH and KM/H?
- Yes. The F6 Multi Car Gauge supports both MPH and KM/H.
You can switch the speed unit in the system settings.
What information does the F6 Multi Gauge displays besides speed?
The F6 Car Gauge displays rich driving data, incuding: speed, compass direction, altitude, time / date, odometer & trip distance, vehicle voltage, inclinometer (pitch & roll angle), satellite signal status, all information is shown clearly on the LCD screen.
Is this only cigarette port?
- Yes, The F6 HUD is powered through your car’s 12V cigarette lighter port
Can you set odometer to match car odometer?
- yes, you can set it to match your car odometer. the setting details please refer to function setting( -10. Odometer Setting).
How Long is the cable?
- The power cable is 2M
